Saturn Evolution Maple-Walnut

The iconic Saturn Maple/Walnut hybrid shell has been appointed with Design Lab features and SONIClear™ Attenuation System to deliver a fuller, rounder tone with bright, versatile, open sound.

Saturn Evolution Maple-Walnut

SE628XM Workhorse Maple 5-Pc Shell Pack
Configurations
Maple-Walnut Hybrid Shell
  • Exotic Aegean Fade (OE)
  • Exotic Night Forest Burst (MZ)
  • Tuscan Red Lacquer (PA)
  • Gun Metal Grey Lacquer (PG)
  • Piano Black Lacquer (PB)
  • Exotic Azure Burst Lacquer (PT)
  • Tuscan Yellow Lacquer (PM)
  • Iridium Silver Lacquer (PD)
  • Polar White Lacquer (PI)
  • Exotic Violet Burst Lacquer (PZ)
  • Brunswick Green Lacquer (PQ)
  • Exotic Sunburst Lacquer (PO)
HARDWARE: Chrome Hardware [C]

SAS (SONIClear™ Attenuation System) Finish

The Natural Satin SAS Finish brings out the beautiful character of the woods used in the drums but also allows the shell to vibrate fully due to its extremely low-mass application. Thicker finishes like high-gloss add mass to the shell and shorten sustain. Future Design Lab models may employ a thicker finish to create a more focused sound.

FEATURES

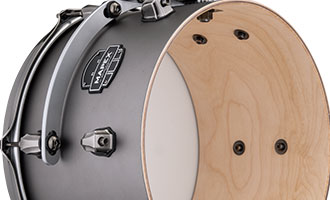

Halo Mounting System

The revolutionary new "Halo" mount featured on all Saturn Evolution toms, unlocks the freedom of full resonance. Using a lateral, unique "under lug-line" suspension system, this new groundbreaking isolation mount allows the shell the freedom to have an open, pure tone. This is done with minimal stiffness usually associated with under hoop mounting systems.

Adjustment Knob

With the rubber gasket inside the mount, you can screw the knob down fully to dampen the shell resonance for a shorter decay, or back it off for a wide, open tone. In the studio, this allows you to "pre-EQ" your drums before feeding them into your plug-ins.

Maple/Walnut Hybrid Shell

The iconic Saturn Maple/Walnut hybrid shell has been appointed with Design Lab features and SoniClear Attenuation System to deliver a fuller, rounder tone with bright, versatile, open sound.

Chamber Specific Design

Plies get progressively thicker, depths graduate by 1/2”, and bearing edges change as the drums get larger in diameter. The combination of all of these details creates an amazing symphony in one kit, where each and every drum sounds perfect!

SPECIFICATIONS

Saturn Evolution
Mounting System Halo Mounting System
Shell Maple and Walnut Hybrid Shell
SAS 0-1 (PD, PM, PA, PG, PQ, PI, PB) Toms (8", 10"): 8-Ply, 7.5mm
Toms (12", 13", 14"), and Floor Toms (14", 16", 18"): 8-Ply, 8.2mm
Bass Drum: 8-Ply, 8.9mm
SAS 2 (MZ, OE, PO, PT, PZ) Toms (8", 10"): 9-Ply, 7.85mm
Toms (12", 13", 14"), and Floor Toms (14", 16", 18"): 9-Ply, 8.55mm
Bass Drum: 9-Ply, 9.25mm
Hardware Chrome / Black Brushed Hardware
Hoops Mapex Sonic Saver Hoops
Mapex SONIClear™ Bearing Edge: 45° on Toms, and Floor Toms
60° on Bass Drum
Air Flow Venting 2 Vent Holes on Toms and Floor Toms
4 Vent Holes on Bass Drum
Floor Tom Legs SAS Static 90 Degree Floor Tom Legs
Sonic Pedestal Floor Tom Feet
Component
Bass Drum SEB1814M 18" x 14", with bass drum mount
SEB1814MA 18" x 14", without bass drum mount
SEB2014M 20" x 14", with bass drum mount
SEB2016M 20" x 16", with bass drum mount
SEB2016MA 20" x 16", without bass drum mount
SEB2018MA 20" x 18", without bass drum mount
SEB2216MA 22" x 16", without bass drum mount
SEB2218MA 22" x 18", without bass drum mount
SEGB1816M 18" x 16" Gong Bass
Floor Tom SEF1412M 14" x 12"
SEF1414M 14" x 14"
SEF1614M 16" x 14"
SEF1616M 16" x 16"
SEF1816M 18" x 16"
Toms SET807M 8" x 7"
SET1007M 10" x 7"
SET1008M 10" x 8"
SET1208M 12" x 8"
SET1209M 12" x 9"
SET1309M 13" x 9"
SET1310M 13" x 10"
SET1410M 14" x 10"
SET1411M 14" x 11"
